Description

350W Gear Reduction Electric Motor, Electric Bike Motor Kit with Controller and Reverse Throttles, Electric Bicycle Brushless Motor Kit

Key Features

Built to Last: Made of aluminum, iron, and copper wire materials, with a spray painting process, this product is hard-wearing, rust-inhibiting, and handles impacts well, offering a long service life.

Excellent Performance: This kit comes with 2 brushless gear reduction motors, each with 350W power and 11.6 N·m rated torque, providing sufficient power and adapting well to scenarios such as carrying loads for electric bicycles.

Complete Kit: This product includes core components such as motors, a controller, throttles, keys, and a lock. The accessories are complete, allowing you to install and use them with ease.

Adjustable Design: The controller supports 24V/36V/48V multi-voltage adaptation and can be matched with different battery packs (but the battery voltage needs to be consistent with the motor voltage). At the same time, it comes with a pair of 3-speed reverse throttles and allows the motor to run clockwise or counterclockwise, making it more convenient and flexible to use.

High Safety: This product has overcurrent and overload protection functions, enhancing safety during use. The motor controller also has multiple protection functions to offer stable and safe performance.

Details

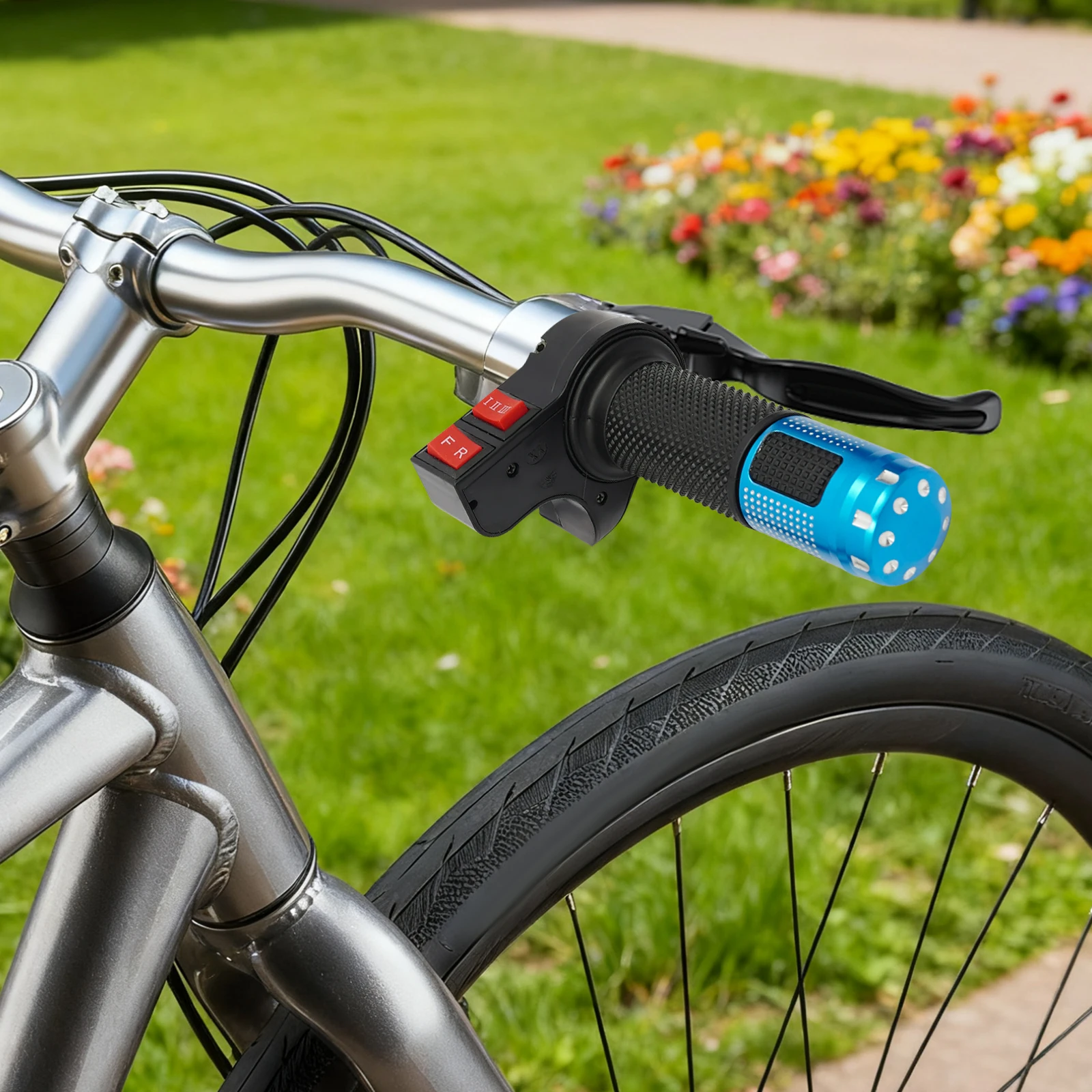

Grippy Throttles: Featuring a textured, dot-pattern surface that boosts traction, they keep your grip secure and enhance overall handling.

Mounting Base: With reserved holes, it facilitates the installation of the motor.

Application

This product is suitable for tricycles, go-karts, ATVs, four-wheeled vehicles, small handcarts, lawn mowers, manual forklifts, wheelchairs, and camping carts.

36V:

Specifications

Color: Silver

Material: Aluminum, Iron, Copper Wire

Process: Spray Painting

Installation Required: Yes

Each Motor Rated Voltage: 36V DC

Each Motor Output Power: 350W

Each Motor Rated Speed: 330rpm

Each Motor Rated Current: 10A

Each Motor Insulation Class: F

Each Motor Protect Grade: IP 33

Controller Voltage: 24/36/48V DC

Controller Under Voltage: 20V

Controller Max. Current: 16A*2

Controller Rated Power: 350W*2

Motor Unload Current: ≤ 2.2V

Motor Unload Speed: 370rpm

Motor Rated Torque: 11.6 N·m

Efficiency: ≥80%

Mounting Base Size: 10.8*5.5cm/4.25*2.1in

Product Size: 10.2*12.8cm/4.02*5in

Package Size: 33*23.5*19.5cm/12.99*9.25*7.68in

Gross Weight: 6.2kg/13.67 lbs

Net Weight: 5.58kg/12.3 lbs

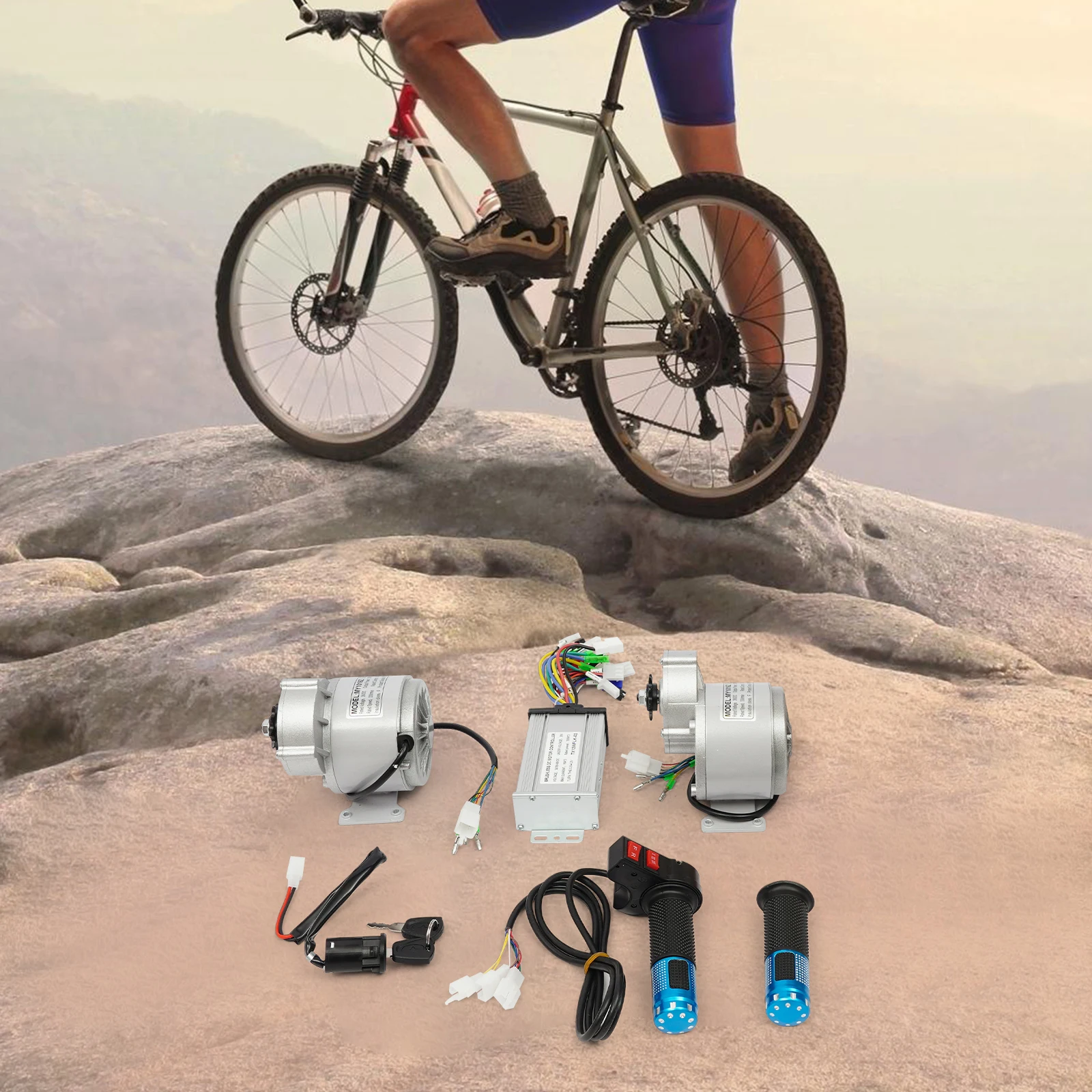

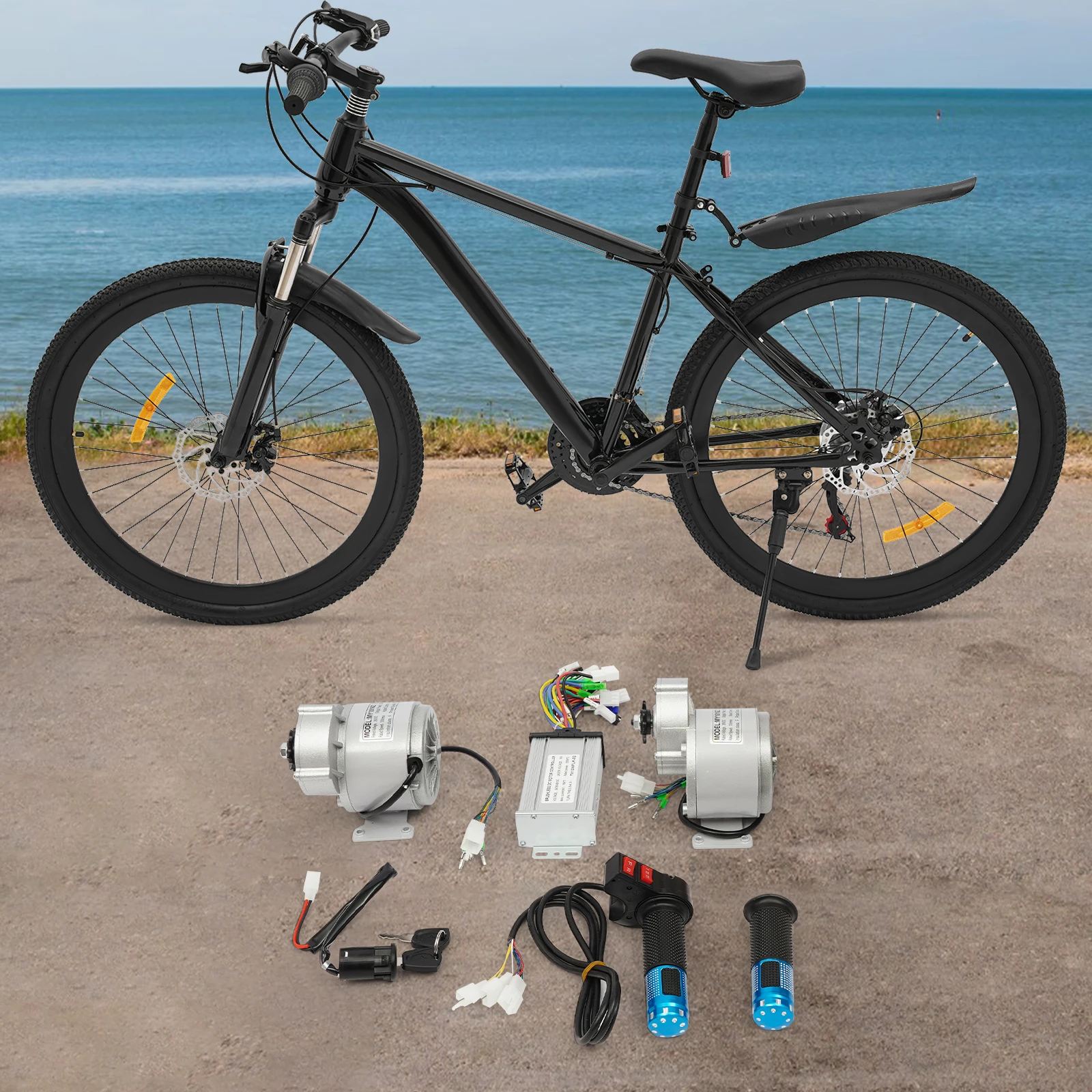

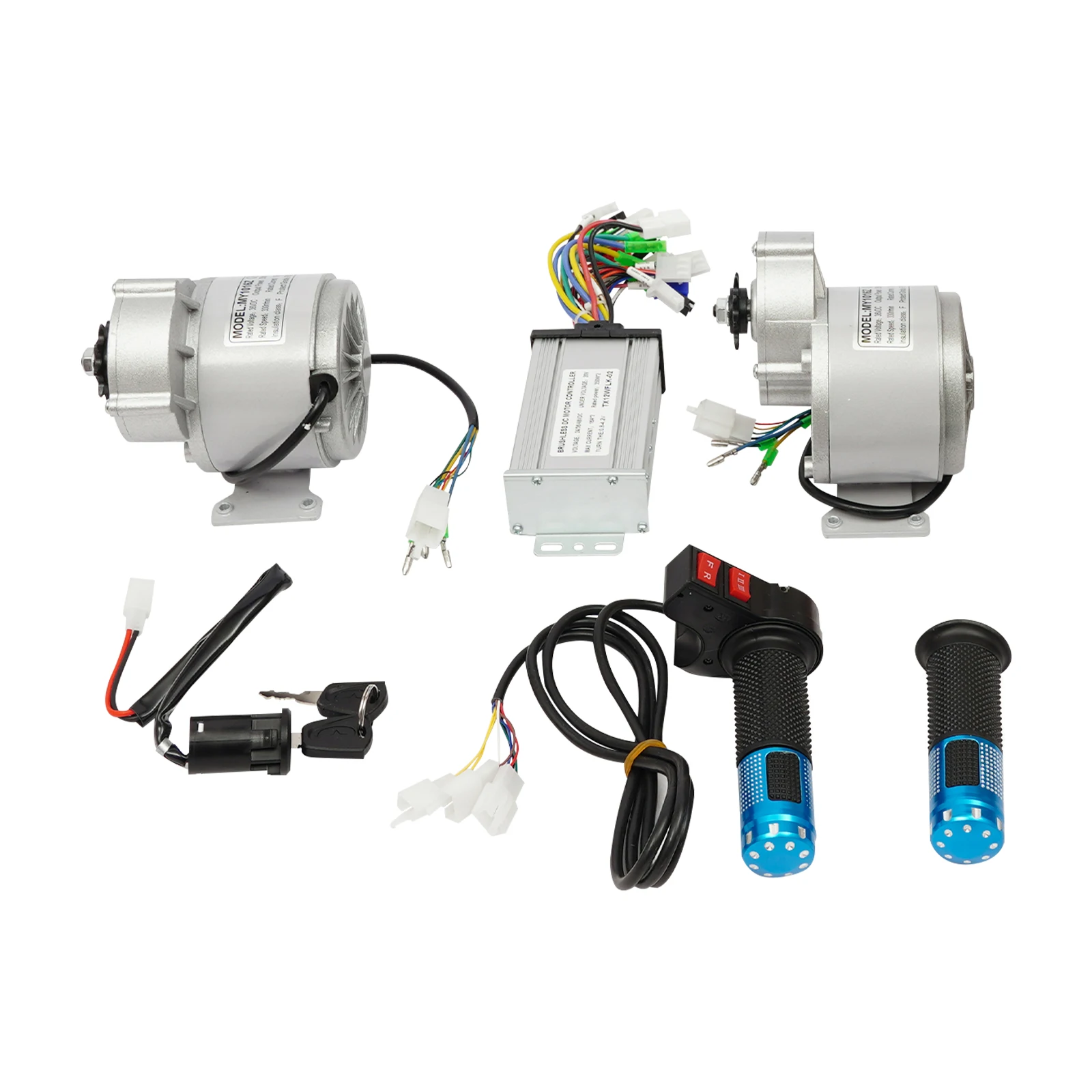

Package Included

2* Electric Motors

1* Motor Controller

1 Set* Three-speed Reverse Throttles

1* Electric Door Lock

2* Keys

Notes

1. Please be informed that this product does not come with a battery and battery charger. You will need to purchase the battery separately (either lead-acid or lithium-ion batteries). The battery capacity should be at least 24V 15Ah or 36V 12Ah.
